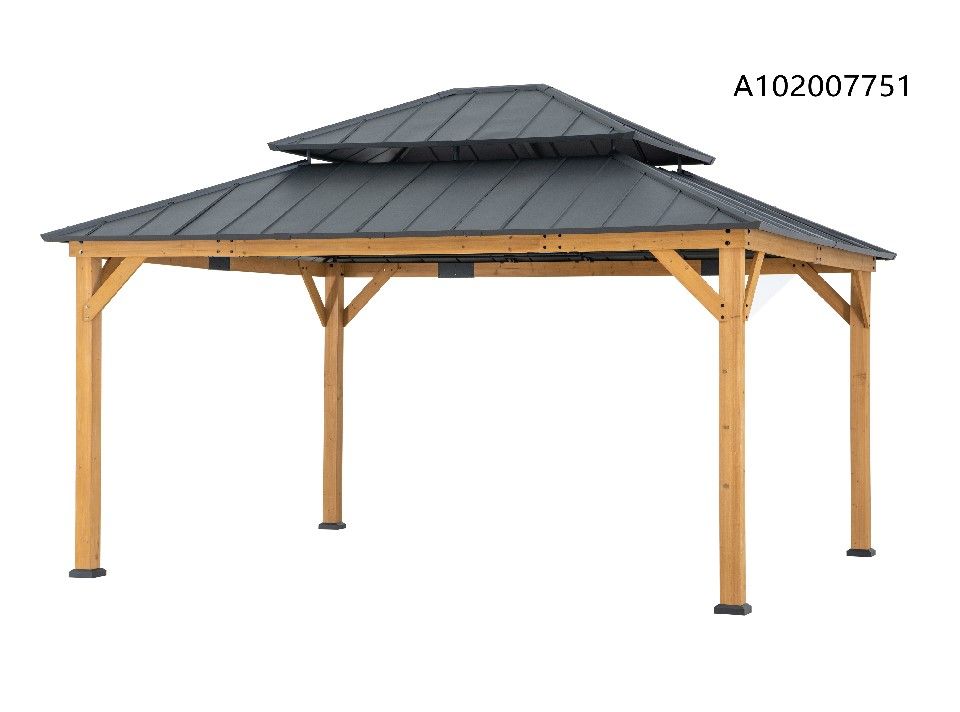

13x15 Archwood V.6C two-tiered Hard Top Gazebo

SKU
A10200775124
In stock

Season: S2024

Store: Sunjoy UK

Shop today at www.sunjoyshop.com and get 10% off when you subscribe to our newsletter!

Get help for this product

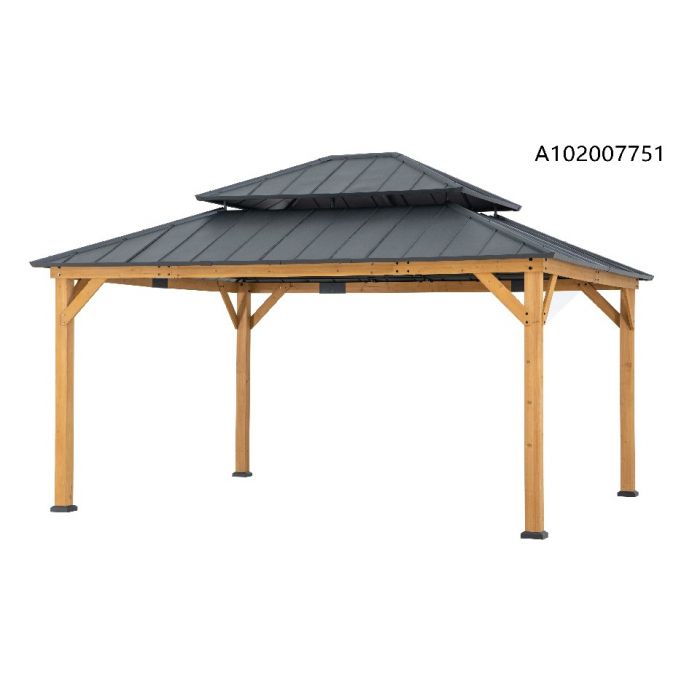

13x15 Archwood V.6C two-tiered Hard Top Gazebo

Assemble Instruction：

Parts

Grouped product items

Name:

Base Cover

Part #:

P00610026905

Qty/set:

4

Order Qty:

Name:

Post Base

Part #:

P00010026503

Qty/set:

4

Order Qty:

Name:

Middle Beam Connector 1

Part #:

P00050223301

Qty/set:

2

Order Qty:

Name:

Middle Beam Connector 2

Part #:

P00050223401

Qty/set:

6

Order Qty:

Name:

Rafter Connector

Part #:

P00050248303

Qty/set:

4

Order Qty:

Name:

Inner Cross Beam Cap

Part #:

P00220047801

Qty/set:

6

Order Qty:

Name:

Cross Beam Inner Middle Baffle

Part #:

P00220043603

Qty/set:

4

Order Qty:

Name:

Big Roof Long Beam

Part #:

P00050247803

Qty/set:

2

Order Qty:

Name:

Big Roof Short Beam

Part #:

P00050247903

Qty/set:

2

Order Qty:

Name:

Big Roof Corner Connector

Part #:

P00050248003

Qty/set:

4

Order Qty:

Name:

Big Roof Rafter

Part #:

P00060333503

Qty/set:

4

Order Qty:

Name:

Big Roof Middle Beam

Part #:

P00060333603

Qty/set:

8

Order Qty:

Name:

Small Roof Rafter

Part #:

P00060332803

Qty/set:

4

Order Qty:

Name:

Small Roof Middle Beam

Part #:

P00060332903

Qty/set:

2

Order Qty:

Name:

Small Roof Connector 1

Part #:

P00050248103

Qty/set:

8

Order Qty:

Name:

Small Roof Connector 2

Part #:

P00050248203

Qty/set:

20

Order Qty:

Name:

Small Top Connector

Part #:

P00050247703

Qty/set:

1

Order Qty:

Name:

Small Roof Short Top Beam

Part #:

P00060333003

Qty/set:

12

Order Qty:

Name:

Small Roof Long Top Beam

Part #:

P00060333103

Qty/set:

4

Order Qty:

Name:

Big Roof Short Small Beam (Short Side)

Part #:

P00060334203

Qty/set:

4

Order Qty:

Name:

Big Roof Long Small Beam (Long Side)

Part #:

P00060334303

Qty/set:

4

Order Qty:

Name:

Big Roof Short Small Beam (Long Side)

Part #:

P00060334403

Qty/set:

4

Order Qty:

Name:

Support Beam

Part #:

P00500090601

Qty/set:

1

Order Qty:

Name:

Hook

Part #:

P00580015401

Qty/set:

1

Order Qty:

Name:

Small Roof Panel Flashing (Short Side)

Part #:

P00060333203

Qty/set:

2

Order Qty:

Name:

Small Roof Left Panel Flashing (Long Side)

Part #:

P00060333303

Qty/set:

2

Order Qty:

Name:

Small Roof Right Panel Flashing (Long Side)

Part #:

P00060333403

Qty/set:

2

Order Qty:

Name:

Big Roof Left Panel Flashing (Short Side)

Part #:

P00060333703

Qty/set:

2

Order Qty:

Name:

Big Roof Right Panel Flashing (Short Side)

Part #:

P00060333803

Qty/set:

2

Order Qty:

Name:

Big Roof Left Panel Flashing (Long Side)

Part #:

P00060333903

Qty/set:

2

Order Qty:

Name:

Big Roof Right Panel Flashing (Long Side)

Part #:

P00060334003

Qty/set:

2

Order Qty:

Name:

Big Roof Middle Panel Flashing (Long Side)

Part #:

P00060334103

Qty/set:

4

Order Qty:

Name:

Small Roof Left Big Panel (Short Side)

Part #:

P00070163403

Qty/set:

2

Order Qty:

Name:

Small Roof Right Big Panel (Short Side)

Part #:

P00070163503

Qty/set:

2

Order Qty:

Name:

Small Roof Middle Panel

Part #:

P00070163603

Qty/set:

2

Order Qty:

Name:

Small Roof Left Big Panel (LongSide)

Part #:

P00070163703

Qty/set:

2

Order Qty:

Name:

Small Roof Right Big Panel (LongSide)

Part #:

P00070163803

Qty/set:

2

Order Qty:

Name:

Small Roof Left Small Panel

Part #:

P00070163903

Qty/set:

4

Order Qty:

Name:

Small Roof Right Small Panel

Part #:

P00070164003

Qty/set:

4

Order Qty:

Name:

Small Roof Rafter Cap

Part #:

P00080053603

Qty/set:

4

Order Qty:

Name:

Big Roof Inclined Beam Cap

Part #:

P00080053703

Qty/set:

4

Order Qty:

Name:

Top Roof Cap

Part #:

P00090024703

Qty/set:

1

Order Qty:

Name:

Left Short Mosquito Netting Rod

Part #:

P00570050503

Qty/set:

2

Order Qty:

Name:

Right Short Mosquito Netting Rod

Part #:

P00570050603

Qty/set:

2

Order Qty:

Name:

Left Long Mosquito Netting Rod

Part #:

P00570050703

Qty/set:

2

Order Qty:

Name:

Right Long Mosquito Netting Rod

Part #:

P00570050803

Qty/set:

2

Order Qty:

Name:

Middle Beam Decoration

Part #:

P00560066403

Qty/set:

10

Order Qty:

Name:

Big Roof Middle Big Panel

Part #:

P00070164103

Qty/set:

6

Order Qty:

Name:

Big Roof Middle Small Panel

Part #:

P00070164203

Qty/set:

4

Order Qty:

Name:

Big Roof Left Big Roof Panel

Part #:

P00070164303

Qty/set:

4

Order Qty:

Name:

Big Roof Right Big Roof Panel

Part #:

P00070164403

Qty/set:

4

Order Qty:

Name:

Big Roof Left Middle Roof Panel

Part #:

P00070164503

Qty/set:

4

Order Qty:

Name:

Big Roof Right Middle Roof Panel

Part #:

P00070164603

Qty/set:

4

Order Qty:

Name:

Big Roof Left Small Roof Panel

Part #:

P00070164703

Qty/set:

4

Order Qty:

Name:

Big Roof Right Small Roof Panel

Part #:

P00070164803

Qty/set:

4

Order Qty:

Name:

Post

Part #:

P00020088401

Qty/set:

4

Order Qty:

Name:

Short Side Left Beam

Part #:

P00040146702

Qty/set:

2

Order Qty:

Name:

Short Side Right Beam

Part #:

P00040146802

Qty/set:

2

Order Qty:

Name:

Middle Cross Beam (Long Side)

Part #:

P00040159602

Qty/set:

2

Order Qty:

Name:

Side Cross Beam 1 (Long Side)

Part #:

P00040172401

Qty/set:

2

Order Qty:

Name:

Side Cross Beam 2 (Long Side)

Part #:

P00040172501

Qty/set:

2

Order Qty:

Name:

Arc Support 1

Part #:

P005000200

Qty/set:

4

Order Qty:

Name:

Arc Support 2

Part #:

P005000201

Qty/set:

4

Order Qty:

Name:

Hardware Pack

Part #:

H099991341

Qty/set:

1

Order Qty:
