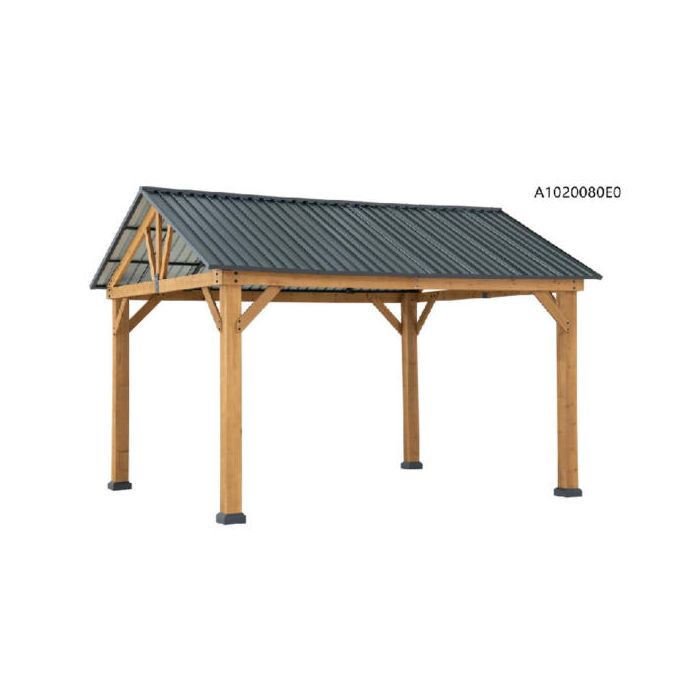

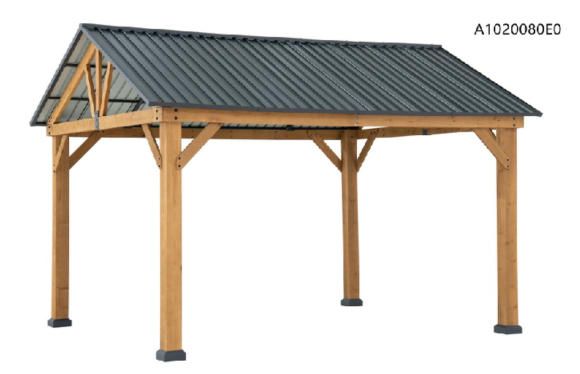

11x13 Henson Hard Top Gazebo(DY-0099)

SKU
A1020080E027
In stock

Season: S2027

Store: Mitre 10

Shop today at www.sunjoyshop.com and get 10% off when you subscribe to our newsletter!

Get help for this product

11x13 Henson Hard Top Gazebo(DY-0099)

Assemble Instruction：

Parts

Grouped product items

Name:

Hardware Pack

Part #:

H099991545

Qty/set:

1

Order Qty:

Name:

Post Base

Part #:

P00010065401

Qty/set:

4

Order Qty:

Name:

Post

Part #:

P000200227

Qty/set:

4

Order Qty:

Name:

Lateral Left Long Beam

Part #:

P000400506

Qty/set:

2

Order Qty:

Name:

Lateral Right Long Beam

Part #:

P000400507

Qty/set:

2

Order Qty:

Name:

Lateral Left Short Beam

Part #:

P000400508

Qty/set:

2

Order Qty:

Name:

Lateral Right Short Beam

Part #:

P000400509

Qty/set:

2

Order Qty:

Name:

Inner Long Beam

Part #:

P000400510

Qty/set:

4

Order Qty:

Name:

Inner Short Beam (Long Side)

Part #:

P000400511

Qty/set:

4

Order Qty:

Name:

Inner Short Beam(Short Side)

Part #:

P000400512

Qty/set:

4

Order Qty:

Name:

Cleat Connector 1

Part #:

P00050260001

Qty/set:

2

Order Qty:

Name:

Cleat Connector 2

Part #:

P00050260101

Qty/set:

2

Order Qty:

Name:

Cleat Connector 3

Part #:

P00050260201

Qty/set:

4

Order Qty:

Name:

Beam Upper Connector

Part #:

P00050260301

Qty/set:

2

Order Qty:

Name:

Roof Top Beam Connector 1

Part #:

P00050260401

Qty/set:

1

Order Qty:

Name:

Roof Top Beam Connector 2

Part #:

P00050260501

Qty/set:

1

Order Qty:

Name:

Roof Top Beam Connector 3

Part #:

P00050260601

Qty/set:

1

Order Qty:

Name:

Middle Beam Lower Connector

Part #:

P00050260701

Qty/set:

6

Order Qty:

Name:

Triangular Support Beam

Part #:

P000601456

Qty/set:

4

Order Qty:

Name:

Big Roof Beam 1

Part #:

P00060348701

Qty/set:

1

Order Qty:

Name:

Big Roof Beam 2

Part #:

P00060348801

Qty/set:

1

Order Qty:

Name:

Big Roof Middle Beam

Part #:

P00060348901

Qty/set:

6

Order Qty:

Name:

Big Roof Panel Flashing1

Part #:

P00060349001

Qty/set:

4

Order Qty:

Name:

Big Roof Panel Flashing2

Part #:

P00060349101

Qty/set:

2

Order Qty:

Name:

Big Roof Panel Flashing3

Part #:

P00060349201

Qty/set:

2

Order Qty:

Name:

Big Roof Small Beam 2

Part #:

P00060349301

Qty/set:

8

Order Qty:

Name:

Big Roof Side Panel Flashing 1

Part #:

P00060349401

Qty/set:

2

Order Qty:

Name:

Big Roof Side Panel Flashing 2

Part #:

P00060349501

Qty/set:

2

Order Qty:

Name:

Big Roof Small Beam 1

Part #:

P00060349601

Qty/set:

8

Order Qty:

Name:

Roof Panel 1

Part #:

P00070177201

Qty/set:

16

Order Qty:

Name:

Roof Panel 2

Part #:

P00070179101

Qty/set:

2

Order Qty:

Name:

Roof Cap 2

Part #:

P00080055801

Qty/set:

2

Order Qty:

Name:

Roof Cap 1

Part #:

P00080055901

Qty/set:

1

Order Qty:

Name:

Triangular Upper Press Piece

Part #:

P00220061201

Qty/set:

2

Order Qty:

Name:

Small Beam Presser

Part #:

P00220061301

Qty/set:

8

Order Qty:

Name:

Press Panel

Part #:

P00220061401

Qty/set:

10

Order Qty:

Name:

Arc Support 1

Part #:

P005000200

Qty/set:

4

Order Qty:

Name:

Arc Support 2

Part #:

P005000201

Qty/set:

4

Order Qty:

Name:

Triangular Frame Slanting Beam

Part #:

P005000436

Qty/set:

4

Order Qty:

Name:

Triangular Middle Support Beam

Part #:

P005000437

Qty/set:

2

Order Qty:

Name:

Metal Brace 1

Part #:

P00500105301

Qty/set:

3

Order Qty:

Name:

Metal Brace 2

Part #:

P00500105401

Qty/set:

2

Order Qty:

Name:

Metal Pin

Part #:

P00510045301

Qty/set:

12

Order Qty:

Name:

Decoration

Part #:

P00560067501

Qty/set:

2

Order Qty:

Name:

Hook

Part #:

P00580020601

Qty/set:

3

Order Qty:

Name:

Base Cover

Part #:

P00610032601

Qty/set:

4

Order Qty:
