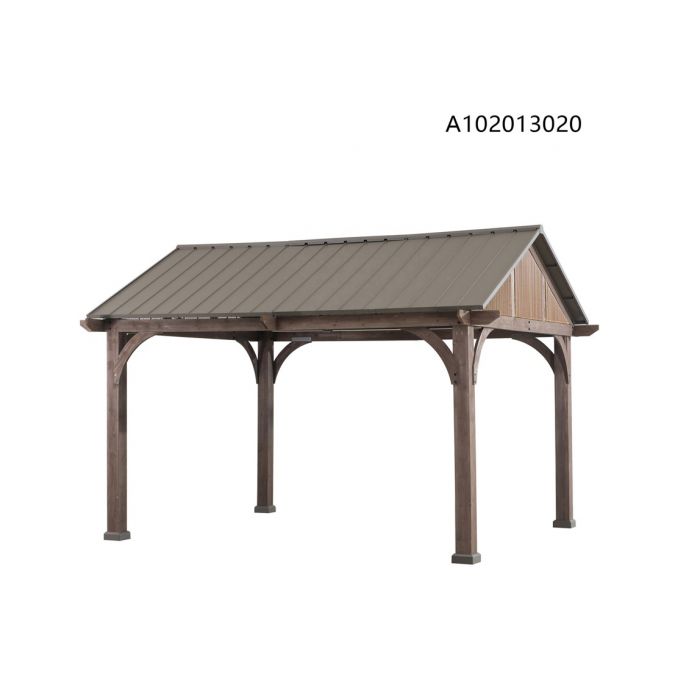

12x14 Maple Hills V3 Pitched Roof Hard Top Gazebo

SKU
A10201302022
In stock

Season: S2022

Store: GBM_Wayfair US DI

Shop today at www.sunjoyshop.com and get 10% off when you subscribe to our newsletter!

Get help for this product

12x14 Maple Hills V3 Pitched Roof Hard Top Gazebo

Assemble Instruction：

Parts

Grouped product items

Name:

Post

Part #:

P00020066101

Qty/set:

4

Order Qty:

Name:

Inner Side Long Beam

Part #:

P00040126101

Qty/set:

4

Order Qty:

Name:

Inner Short Beam (Short Side)

Part #:

P00040126301

Qty/set:

4

Order Qty:

Name:

Inner Short Beam (Long Side)

Part #:

P00040126201

Qty/set:

4

Order Qty:

Name:

Outer Short Left Beam

Part #:

P00040125801

Qty/set:

2

Order Qty:

Name:

Outer Short Right Beam

Part #:

P00040126001

Qty/set:

2

Order Qty:

Name:

Outer Long Left Beam

Part #:

P00040103601

Qty/set:

2

Order Qty:

Name:

Outer Long Right Beam

Part #:

P00040125901

Qty/set:

2

Order Qty:

Name:

Beam Tail 1

Part #:

P00560047401

Qty/set:

4

Order Qty:

Name:

Beam Tail 2

Part #:

P00560049801

Qty/set:

2

Order Qty:

Name:

Arc Brace 1

Part #:

P00500069801

Qty/set:

4

Order Qty:

Name:

Arc Brace 2

Part #:

P00500069901

Qty/set:

4

Order Qty:

Name:

Triangular Frame Slanting Beam

Part #:

P00060216901

Qty/set:

4

Order Qty:

Name:

Triangular Support Beam

Part #:

P00500063601

Qty/set:

4

Order Qty:

Name:

Base Cover

Part #:

P00610023301

Qty/set:

4

Order Qty:

Name:

Big Roof Side Panel Flashing 2

Part #:

P00060216801

Qty/set:

2

Order Qty:

Name:

Big Roof Panel Flashing 1

Part #:

P00060194401

Qty/set:

2

Order Qty:

Name:

Big Roof Panel Flashing 2

Part #:

P00060216301

Qty/set:

2

Order Qty:

Name:

Big Roof Panel Flashing 3

Part #:

P00060216401

Qty/set:

2

Order Qty:

Name:

Big Roof Panel Flashing 4

Part #:

P00060216501

Qty/set:

2

Order Qty:

Name:

Triangular Frame Connector 3

Part #:

P00050169301

Qty/set:

4

Order Qty:

Name:

Small Beam Press Piece

Part #:

P00220035001

Qty/set:

8

Order Qty:

Name:

Roof Panel

Part #:

P00070091401

Qty/set:

12

Order Qty:

Name:

Big Roof Top Cap 2

Part #:

P00080036701

Qty/set:

1

Order Qty:

Name:

Big Roof Top Cap 1

Part #:

P00080036601

Qty/set:

2

Order Qty:

Name:

Metal Pin

Part #:

P005100267

Qty/set:

8

Order Qty:

Name:

Post Base

Part #:

P00010046001

Qty/set:

4

Order Qty:

Name:

Arc Brace Connector

Part #:

P00050177301

Qty/set:

8

Order Qty:

Name:

Triangular Frame Connector 1

Part #:

P00050169101

Qty/set:

2

Order Qty:

Name:

Triangular Frame Connector 2

Part #:

P00050169201

Qty/set:

2

Order Qty:

Name:

Cross Beam Upper Connector

Part #:

P00050169501

Qty/set:

4

Order Qty:

Name:

Triangular Frame Upper Press Piece

Part #:

P00220034901

Qty/set:

2

Order Qty:

Name:

Triangular Frame 1

Part #:

P00560043401

Qty/set:

2

Order Qty:

Name:

Triangular Frame 2

Part #:

P00560043501

Qty/set:

2

Order Qty:

Name:

Triangular Frame 3

Part #:

P00560043601

Qty/set:

2

Order Qty:

Name:

Top Beam 1

Part #:

P00060193801

Qty/set:

1

Order Qty:

Name:

Top Beam 2

Part #:

P00060193901

Qty/set:

1

Order Qty:

Name:

Top Beam Connector 1

Part #:

P00050168801

Qty/set:

1

Order Qty:

Name:

Top Beam Connector 2

Part #:

P00050168901

Qty/set:

1

Order Qty:

Name:

Top Beam Connector 3

Part #:

P00050169001

Qty/set:

1

Order Qty:

Name:

Beam Tail Connector

Part #:

P00050177401

Qty/set:

2

Order Qty:

Name:

Middle Beam

Part #:

P00060193701

Qty/set:

6

Order Qty:

Name:

Middle Beam Lower Connector

Part #:

P00050168701

Qty/set:

6

Order Qty:

Name:

Middle Beam Support Beam

Part #:

P00500063301

Qty/set:

3

Order Qty:

Name:

Hook

Part #:

P005800001

Qty/set:

1

Order Qty:

Name:

Big Roof Small Beam

Part #:

P00060216601

Qty/set:

16

Order Qty:

Name:

Big Roof Side Panel Flashing 1

Part #:

P00060216701

Qty/set:

2

Order Qty:

Name:

Hardware Pack

Part #:

H099991016

Qty/set:

1

Order Qty:
